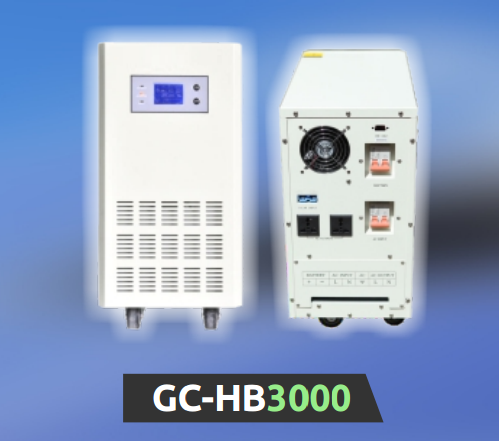

Spesifikasi Solar Power Bank GC-HB3000:
| No | Name | Parameters |
| Product Parameter | ||
| 1 | Product Size(mm) | 490*235*420+65 |
| 2 | Housing Material | Iron Shell |
| 3 | Shell Color | Cream Color |
| 4 | Packing (mm) | 585*355*630 |
| 5 | Product Weight | 41.15Kg |
| 6 | Prioduct Gross weight | 51.75Kg |
| Technical Parameter | ||
| 7 | DC24V-AC220V,1000W/1500VA | GH-HB3000 |
| 8 | Power Output(W) | 200W |
| 9 | Voltage at Pmax | 36.8V |
| 10 | Current at Pmax | 5.43A |
| 11 | Open Circuit Voltage(V) | 44V |
| 12 | Maximum System Voltage(V) | 1000VDC |
| 13 | Connect Array | 2 PCS in series, 7 pcs in Parallel |
| 14 | Solar Panel Power range(advise) | 800W-3000W |
| 15 | Controller input range | DC60V-DC100V |
| 16 | Recommended Rated Voltage of input | DC36V |
| 17 | Charging Current | 72A |
| 18 | Effeciency | 96% (Max) |
| 19 | Rated Output power | 3KW |
| 20 | DC input voltage | 48VDC |
| 21 | Rated Output voltage | 220V±10% |
| 22 | Output Frequency | 50Hz±0.5Hz |
| 23 | Working Efficiency | >85% |
| 24 | Output wave | Pure Sine Wave(THD≤5%) |
| 25 | Battery type | LifePo4 Battery |
| 26 | Capacity | 48V/40AH(Max:1920WH) |
| 27 | Installation Method | Build Inside the case |
